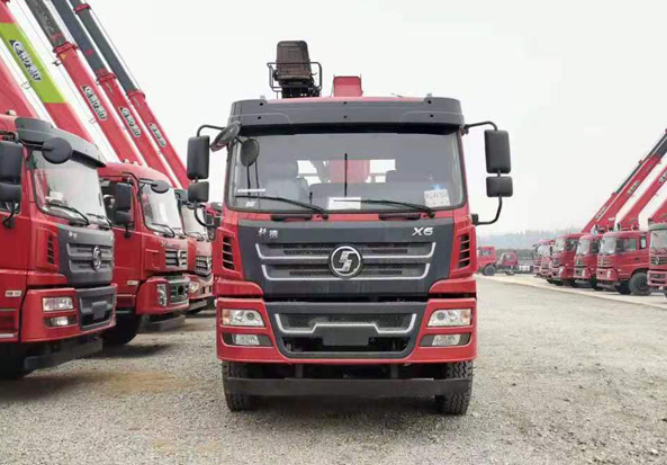

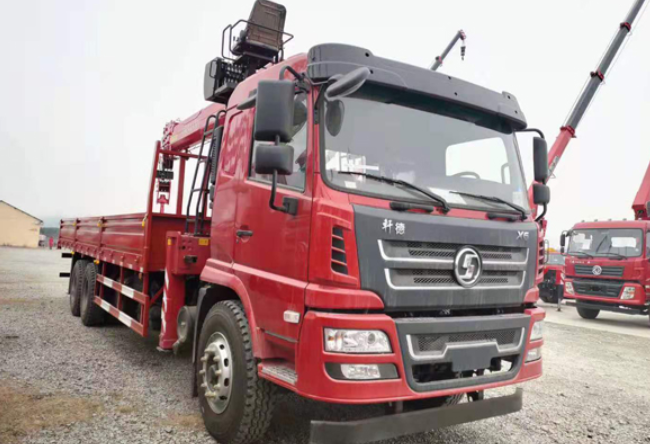

Chassis configuration: SHACMAN Xuande X6 cab, Yuchai 240/270 horsepower engine, Fast 9-speed transmission, 300mm (8+6+8) three-layer frame, original air conditioner, daytime running lights , electric doors and windows, airbag seats, four-point suspension cab, driving recorder.

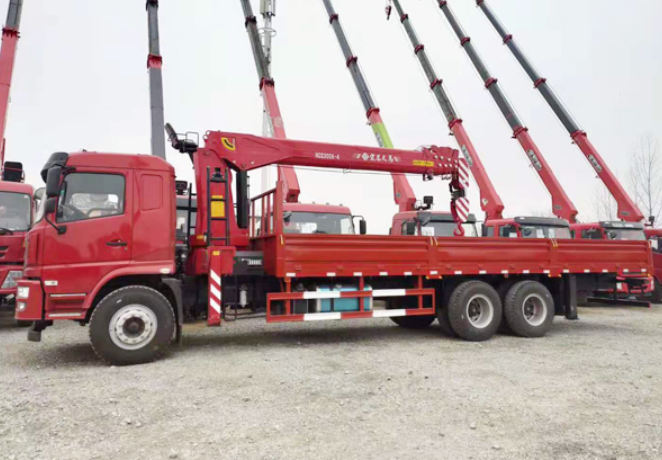

Crane parameters: Hongchang Tianma 12-ton five-section arm crane, operated on a high-altitude seat, plunger pump, radiator, one-key start and stop device, maximum lifting height of the crane is 18.9 meters, maximum working radius is 16.4 meters , the full extension arm can lift up to 1.5 tons.

Cargo box size: The inner size of the cargo box is 8400*2400*550mm, the side panels of the cargo box are 2mm thick, the bottom plate is 4mm thick, the horizontal rib striped appearance is an ordinary cargo box structure. Users can choose to install the cargo box themselves.

Announcement information: SHACMAN brand SX5251JSQGP5 truck-mounted lifting transport truck, the vehicle size is 12000*2550*3850mm, the cargo box size is 8400*2400*550mm, the total mass is 24500kg, the empty weight is 15700kg, and the allowed load is 8605kg.
