Powerful performance

8-section 90m elliptical main boom, maximum lifting moment 615t.m, leading performance in the same level of the industry.

Fully extended boom maximum lifting moment 268t.m, fully extended boom maximum lifting weight 7.4t, higher lifting height and longer lifting distance.

The longest boom length is 118.3m, the maximum lifting weight is 1.4t, the maximum lifting height is 118m, and the auxiliary boom performance is stronger.

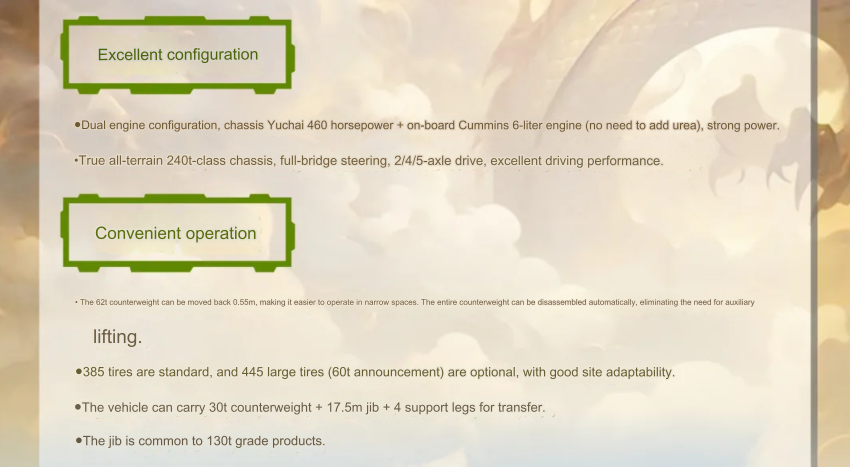

Excellent configuration

Dual engine configuration, chassis Yuchai 460 horsepower + Cummins 6-liter engine (no urea), strong power.

True all-terrain 240-ton chassis, full-bridge steering, 2/4/5-bridge drive, excellent driving performance.

Convenient operation

The 62t counterweight can be moved back 0.55m, which is more convenient for narrow space operation. The full counterweight can be disassembled automatically, eliminating the trouble of auxiliary lifting.

385 tires are standard, and 445 large tires (60t announcement) are optional, with good site adaptability.

The vehicle can carry 30t counterweight + 17.5m jib + 4 support plates for transfer.
