When it comes to 5 tons, the first thing that comes to mind for all hoisting bosses is XCMG's "old 5 tons". As a mark of an era, the old 5 tons is not only the "pioneer" in the field of Chinese engineering cranes, but also the "enlightenment vehicle" of China's first generation of hoisting workers.

It can be said that the 5-ton crane is a must-have item for many beginners to make a fortune. It is like a glass of treasured wine, which continues to ferment in the cellar of the market, and has a more lasting and fuller flavor.

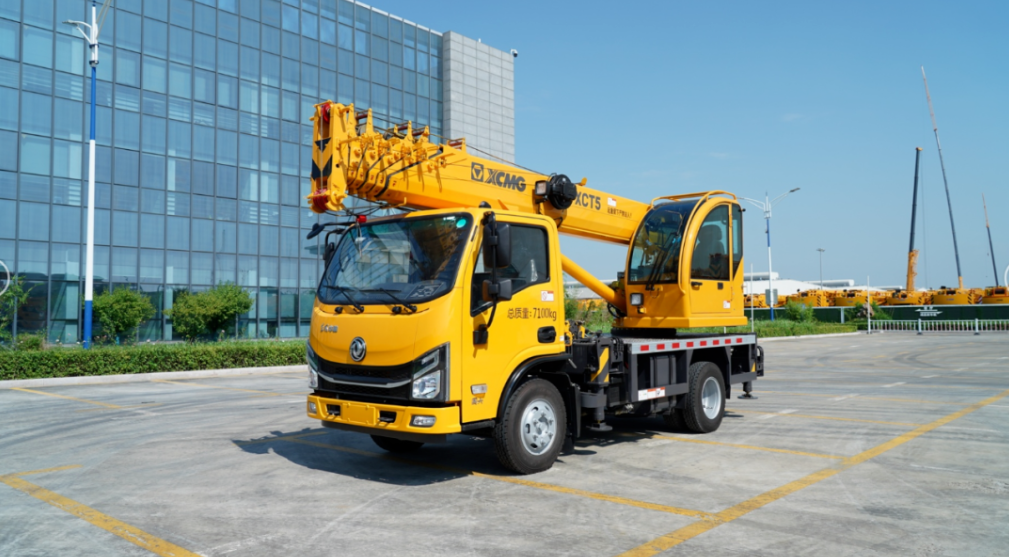

Today, XCMG's "new five tons" is launched, the urban construction elf, the efficient SMARTXCT5L6 is here.

XCT5L6 adopts XCMG's unique whole-machine matching technology, and preferentially matches high-quality steel, hydraulics, electrical, turntable, main arm, control room, etc., which undoubtedly lays a solid foundation for the performance and durability of the whole vehicle.

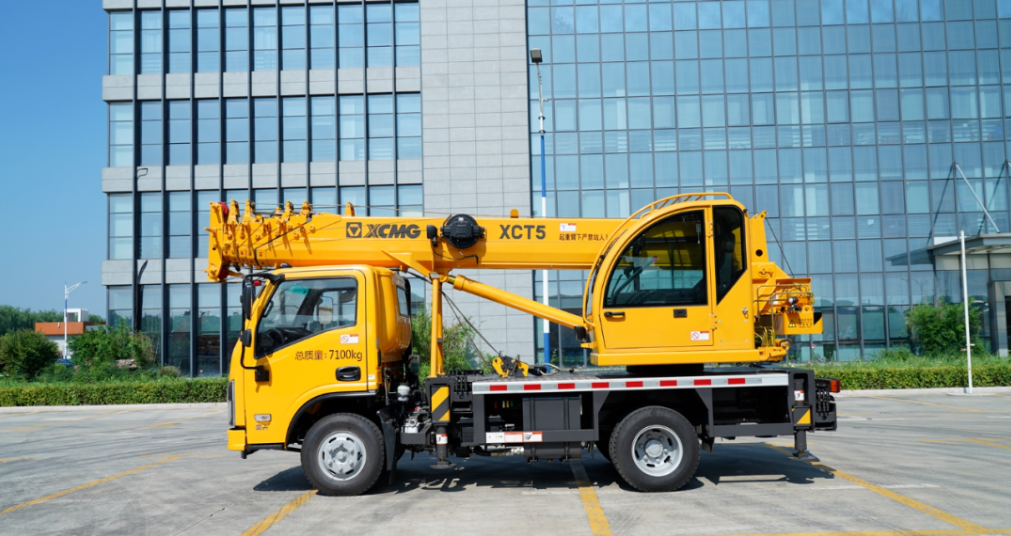

Boom length is one of the important indicators to measure crane performance. The six-section 24m super-strong main boom, fully extended boom lifting weight 2t, maximum lifting torque up to 147kN.m, the strongest lifting performance in the same class;

Optional 1.5m fixed jib, maximum lifting weight 1t, maximum lifting height up to 25.7m, 0°, 15°, 30° multi-angle adjustable, barrier-free access to windows and homes, covering old community renovation, billboard hoisting, landscaping and more operation scenarios.

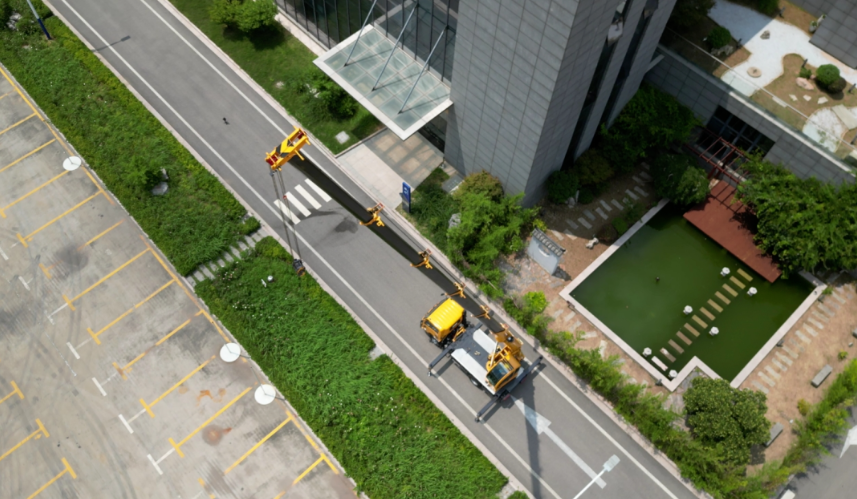

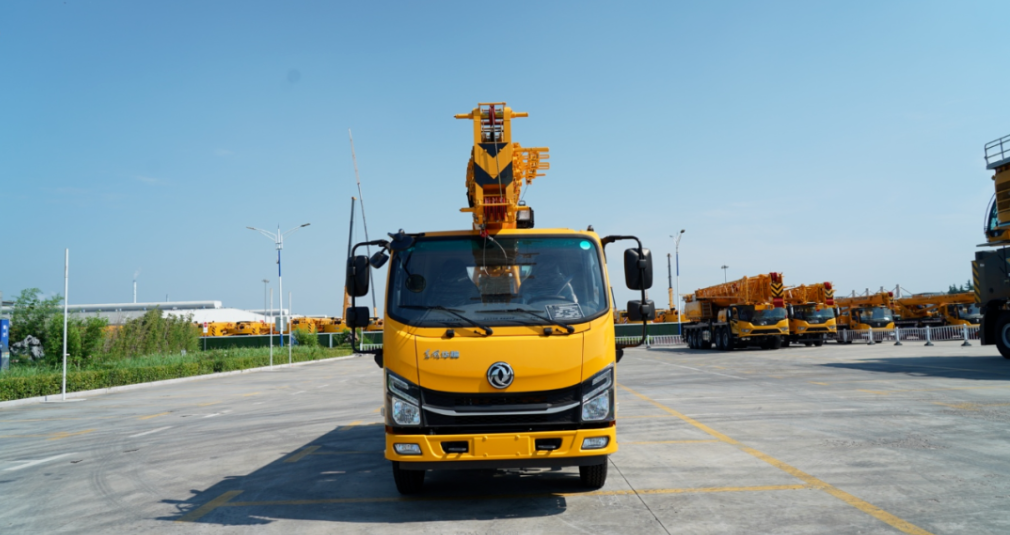

The body of the machine is narrow, with the overall dimensions of 6m×2m×2.9m, the minimum turning radius of 6.2m, and the counterweight turning radius within the outrigger span. It is maneuverable and flexible, with high passability, and is very suitable for flexible operation in narrow spaces, bringing great convenience to urban construction.

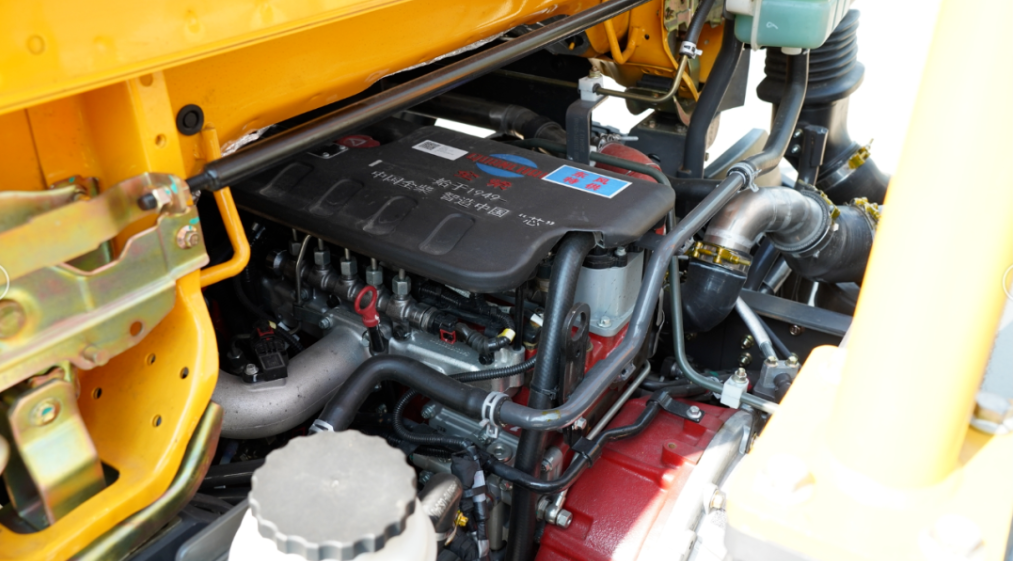

A good horse needs a good saddle. How can such a perfect crane be without an excellent power system? The vehicle is equipped with a diesel four-cylinder engine with a rated power of 103KW and a maximum climbing ability of ≥30%. Whether it is starting acceleration or continuous operation, it can still maintain stable operation, greatly extending the service life of the equipment.

XCT5L6 is still too comprehensive.

● It has a mature and stable load-sensitive hydraulic system, which is smooth to operate and has first-class coordination;

● It takes 20 seconds to lift the boom and 32 seconds to fully extend the boom. It is more time-saving to do several trips a day;

● The lifting mechanism is driven by a hydraulic motor, equipped with a double-folded drum and anti-rotation wire rope. The lifting adopts a quantitative motor, and the minimum stable speed reaches 100rpm, with good lifting stability;

● The slewing adopts a cycloidal hydraulic motor, and a slewing balance valve is added; the reversing valve stem adopts a special throttling load-sensitive design, the system minimum flow is more stable, the system stiffness is more reasonable, and the micro-motion and smoothness of the operation are more prominent;

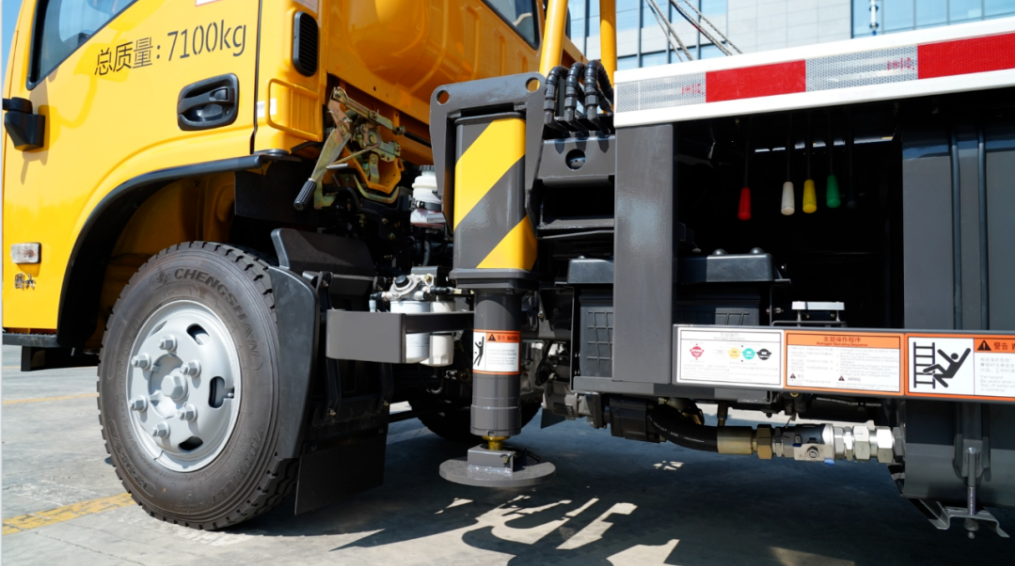

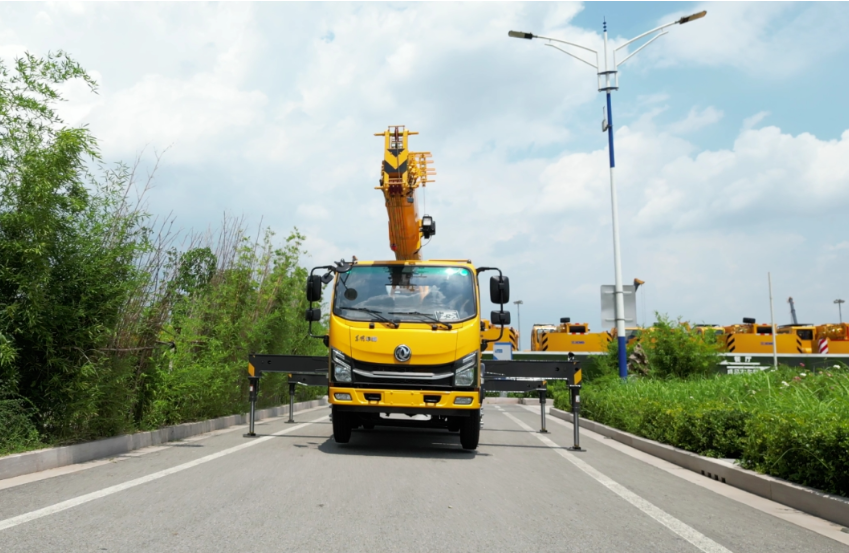

● The 648mm large-scale slewing bearing has a larger leg span (4.3mx3.23m) and strong anti-overturning ability.

In addition to the hardware advantages, XCT5L6 comes standard with 6 major safety protection devices: high-precision force limiter, winch three-circle protector, boom head height limiter, joystick spring return system, hydraulic balance valve, hydraulic overflow valve, all-round guarantee of hoisting operation safety.

XCMG XCT5L6 vehicle is designed and manufactured through XCMG mainstream mature supporting system, the structural test is certified by the National Engineering Machinery Quality Inspection and Testing Center, and the reliability verification is carried out with three times the conventional standards to ensure quality; after-sales service is convenient, maintenance cost is low, hoisting reliability is high, the whole machine life is long, and the operating cost is low.
