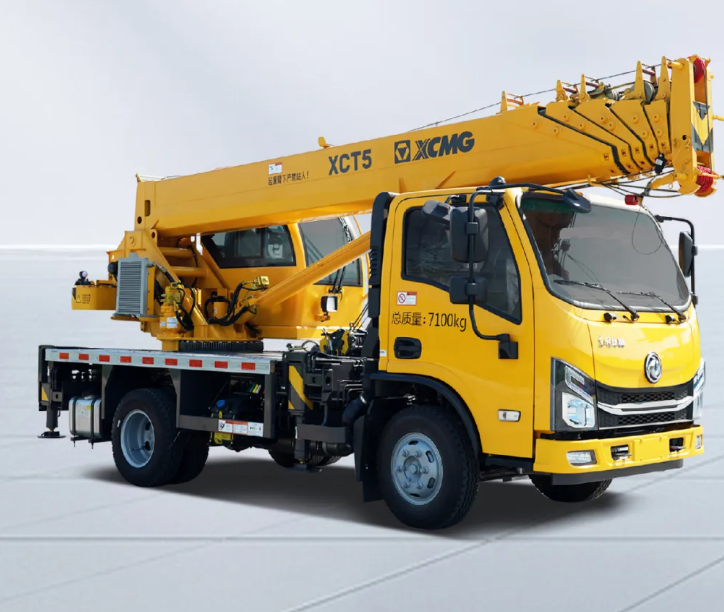

The product is compact and flexible to transfer

The machine size is 6mx2mx2.9m, with a minimum turning radius of 6.2m. It can pass 99% of the roads in rural towns and villages, and is flexible and highly passable; the counterweight turning radius is within the span of the outriggers, and it is highly adaptable to narrow working spaces such as factories.

Excellent performance and wider coverage

The six-section 24m super-strong main arm is made of high-strength structural steel, with a full-extended arm lifting weight of 2t, and optional larger counterweights, with a real and reliable performance table; optional 1.5m auxiliary arm, maximum lifting weight of 1t, maximum lifting height of 25.7m, 0°, 15°, 30° multi-angle adjustable, barrier-free entry into windows and homes, covering more operating scenarios such as old community renovation, billboard hoisting, and landscaping.

Precise control and efficient operation

Mature and stable load-sensitive hydraulic system, smooth control and good coordination.

20s for variable-length lifting, 32s for full extension, several trips a day, more time-saving for lifting and extending.

The lifting mechanism is driven by a hydraulic motor, equipped with a double-folded drum and anti-rotation wire rope. The lifting adopts a quantitative motor, the minimum stable speed reaches 100rpm, and the lifting stability is good.

The slewing adopts a cycloidal hydraulic motor, and a slewing balance valve is added; the reversing valve stem adopts a special throttling load-sensitive design, the system minimum flow is more stable, the system stiffness is more reasonable, and the micro-motion and smoothness of the operation are more prominent.

The 648mm large-size slewing bearing has a larger leg span (4.3mx3.23m) and strong anti-overturning ability.

Humanized design, safe and reliable

Six safety protection devices as standard

1) High-precision force limiter

2) Three-circle winch protector

3) Boom height limiter

4) Joystick spring return system

5) Hydraulic balance valve

6) Hydraulic overflow valve

All-round guarantee of operation safety
