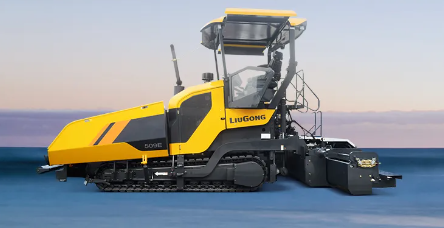

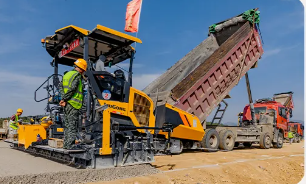

Liugong 509E paver is a highly efficient and energy-saving multi-purpose crawler paver independently developed according to market demand. It uses a low-speed engine and ECO energy-saving mode, with obvious energy-saving and noise reduction effects; fully electronic closed-loop control, excellent automatic performance, excellent paving performance; easy operation and maintenance, convenient diagnosis, and high efficiency. This crawler paver is mainly suitable for paving operations of various road base and surface materials, including cement stabilizer, asphalt concrete and other asphalt paving operations. It can also realize constant temperature paving function. It is an ideal paving equipment for the construction of high-grade highways, airports, ports, factories and communities.

Strong performanceRe-paving production capacity 1000t/h;

● The spiral material distribution system and scraper conveying system are fully upgraded, and the output power and torque are increased by 15%;

● The high-strength design of the whole machine's spiral, scraper and other key components takes into account both asphalt and water-stabilized construction

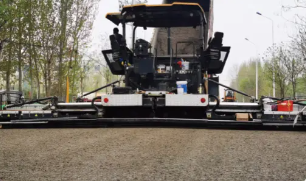

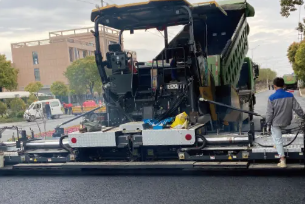

High-strength telescopic screedThe zero-telescopic screed can be matched with the main telescopic section of different specifications such as 3~5.7m/3~6m, etc., and can be used for constant temperature paving, heating while working, ensuring the paving effect, avoiding color difference, roughness and other problems;

Quick assembly design, no need to remove the front baffle, modular installation;

Electro-hydraulic arch adjustment, button operation;

Leveling height increased to 450mm, suitable for various leveling instruments and road rock construction environments

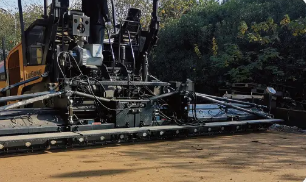

High-strength mechanical screedThe zero mechanical screed can be assembled quickly without removing the front baffle, which is simple and convenient;. A variety of heating methods are available: gas heating, electric heating;

The zero leveling height is increased to 450mm, which is suitable for various leveling instruments and road rock construction environments.

Simple controlNew control system, functional button block division

10-inch high-brightness color touch screen, day/night mode, simple and clear, easy to operate;

With sound and light alarm, fault self-diagnosis and other functions.

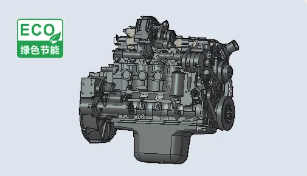

High efficiency and energy savingEngine energy saving and consumption reduction control, with ECO economic mode,

automatically matches the engine speed according to the action to minimize energy consumption;

The wave pressure adopts a load-sensitive system to reduce the energy consumption of each cylinder action and improve the response speed.

Extreme testThe power system is tested at 98% of the extreme load, which can meet the requirements of 24-hour uninterrupted construction at an ambient temperature of 50°C, and can easily cope with working conditions such as Gobi and desert;

Steering system extreme test to ensure the adhesion and reliability of the steering system;

New crawler travel system, longer driving crawler, improved adhesion effect, hydraulic automatic tensioning system, greatly extending the life of the crawler.

Anti-segregation designScraper ratio adjustment, smoother material feeding, less prone to segregation;

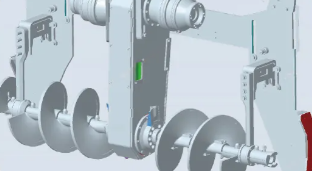

Optimized spiral channel design, lower material resistance coefficient, reduced segregation; zero narrower scraper triangle plate and narrower spiral box, eliminating the middle segregation zone; the size of the core spiral hanger is reduced to reduce material resistance;

zero large thickness kit package, paving 500mm at a time
